Stainless steel tube
Stainless steel tube

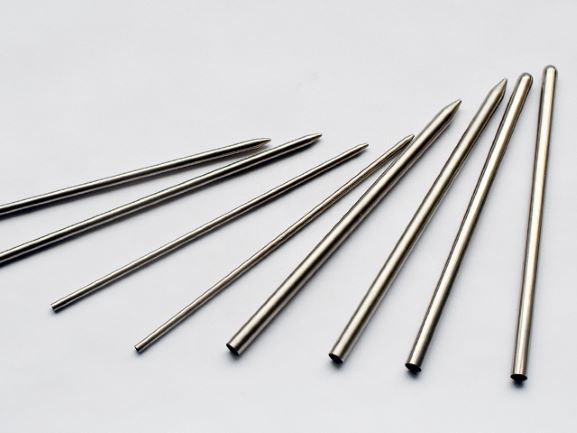

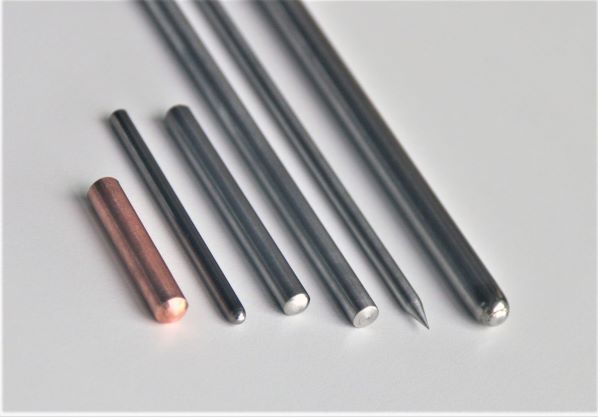

Stainless steel protection tube
There are two manufacturing techniques for the SS tubes: stretching, and welding.
Stretching is for producing small diameter and short length tubes, the closed end is united with the body, 100% no leakage. It is made of SS304&SSS316.
Welding is for producing bigger diameter and long length tubes, it's harder and stronger, for high temperature application. It's leakage tested 100%. Materials SS304 and SS316.
Popular dimensions of Stretching tube (mm)
Outer diamete | Wall thicknes | Length range |
3.0 | 0.20 | 10~40 |
| 4.0 | 0.25 | 10~50 |
| 5.0 | 0.25 | 10~70 |
| 6.0 | 0.30 | 10~80 |
Popular dimensions of Welding tube (mm)
| Outer diameter | Wall thickness | Length range |
| 6.0 | 0.5 | 80~500 |
| 8.0 | 1.0 | 80~500 |
| 10.0 | 1.0 | 80~2000 |
| 12.0 | 1.2 | 100~2000 |
