TC1-Nozzle thermocouple

Nozzle thermocouple

A cheap and high quality thermocouple mostly used in plastic machines, sealing machines and ovens where temperature range from 0 to 400℃. Grounded junction is suitable for fast reaction, thermocouple wires are welded with the pocket. Insulated junction is insulated with ceramic bead which can stand at high temperature. The standard lead cable is 2x1/0.5mm(24AWG, solid)-fiberglass insulation-stainless steel over braid. Accuracy Class I according to thermocouple standard IEC60584-2:1995

An example of order code
TC1 K G 020 M A
Nozzle thermocouple type K
Grounded junction, Lead length 2meters
Thread M6x1, Split leads end

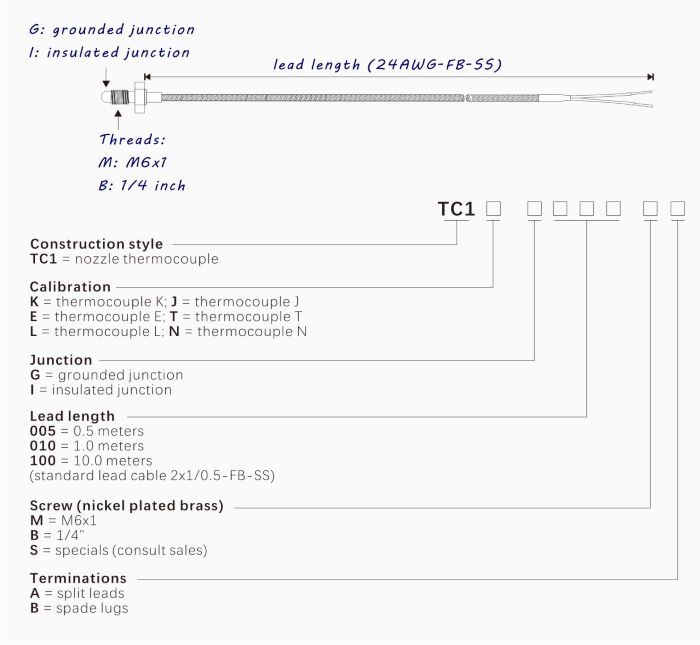

Order code
