TC5-Ring terminal thermocouple

Ring terminal thermocouple

An easy fixing thermocouple mostly used in kinds of machines, ovens, engines where temperature range from 0 to 400℃. Grounded junction is suitable for fast reaction, thermocouple wires are welded with ring terminal.The standard lead cable is 2x7/0.2mm(24AWG, stranded conductors)-fiberglass insulation- fiberglass jacket- stainless steel over braid. Accuracy Class I according to thermocouple standard IEC60584-2:1995

An example of order code
TC5 K G 020 A B
Right terminal thermocouple type K
Grounded junction, Lead length 2 meters
Standard ring dimension (10x5x0.5mm), spade lugs end

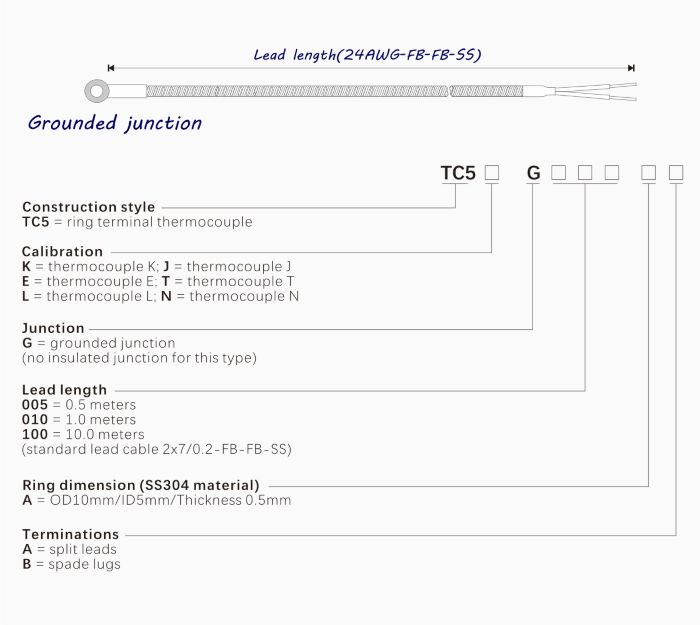

Order code
