TC6-Exposed junction thermocouple

Exposed junction thermocouple

Obviously the feature of exposed junction thermocouple is exposed junction which is fast measuring load temperature range from 0 to 400℃. The mounting metal parts is made of nickel plated brass while stainless steel is available upon special requirements. The standard lead is 2x7/0.2mm(24AWG, stranded conductors)-fiberglass insulation- fiberglass jacket- stainless steel over braid. Accuracy Class I according to thermocouple standard IEC60584-2:1995

An example of order code
TC6 K E 020 M A
Exposed junction thermocouple type K
Exposed junction, Lead length 2 meters
Connection thread M6x1, Split leads end

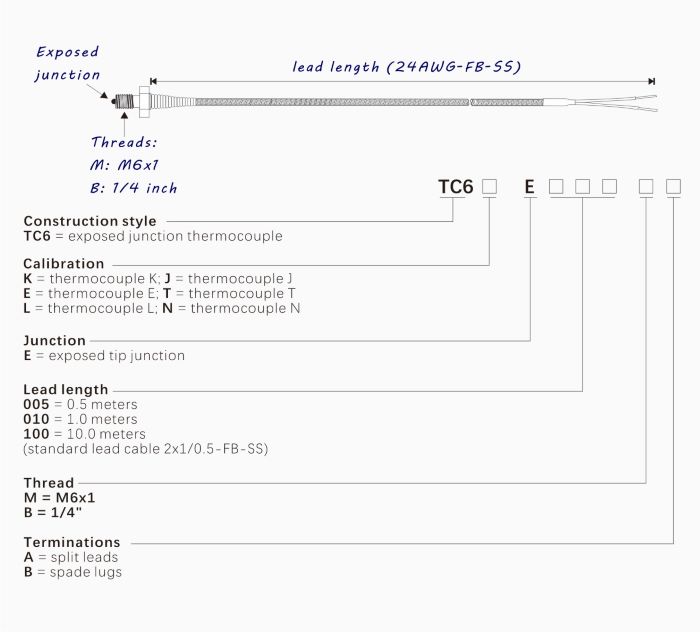

Order code
