TC9-Metal transition thermocouple

Metal transition thermocouple  [ Mineral Insulated ]

Metal transition thermocouple which is the most popular mineral insulated thermocouple style is widely used in all kinds of industrials where temperature range from 0 to 1000℃. Mineral insulated probe offers high accuracy measuring result as well as long lifetime. The standard lead is 2x7/0.2mm(24AWG, stranded conductors)-fiberglass insulation- fiberglass jacket- stainless steel over braid, Other cables like PVC, FEP, PTFE, as well as silicone cable are all on choice. Accuracy Class I according to thermocouple standard IEC60584-2:1995

An example of order code
TC9 J SI 020 D 1.0 -100 - C
Mineral insulated metal transition thermocouple type J, Simplex insulated junction, Lead length 2 meters
Sheath material INCONEL600, probe OD1.0 x length 100mm, Miniature plug termination

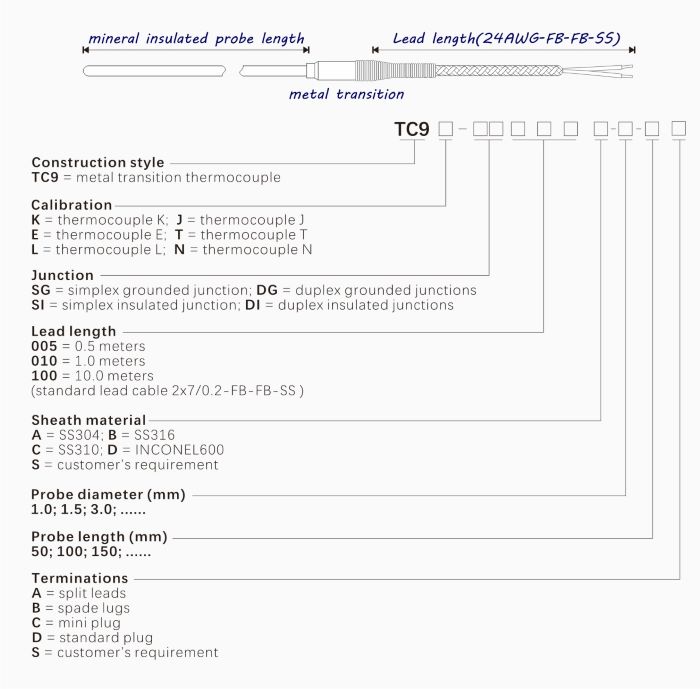

Order code

* Tell us your cable specification supposed the standard one is not suitable for your application. You can find more cables in our thermocouple cable section introduction.
