TC11-Connection head thermocouple

Connection head thermocouple  [ Mineral Insulated ]

Connection head thermocouple which offers water-proof IP65 class is widely used in all kinds of industrials where temperature range from 0 to 1600℃. Mineral insulated probe offers high accuracy measuring result as well as long lifetime. There are over 20 types of Connection heads and connection blocks on your choice. Mounting threads can be nipple or compression fitting. Accuracy Class I according to thermocouple standard IEC60584-2:1995

An example of order code
TC11 K DI A C 6.0-200 A 0
Mineral insulated connection head thermocouple type K
Duplex insulated junction, connection head KNE, sheath material SS310
Probe OD6.0xL200mm, nipple connection thread 1/2"BSPP, No compression fitting

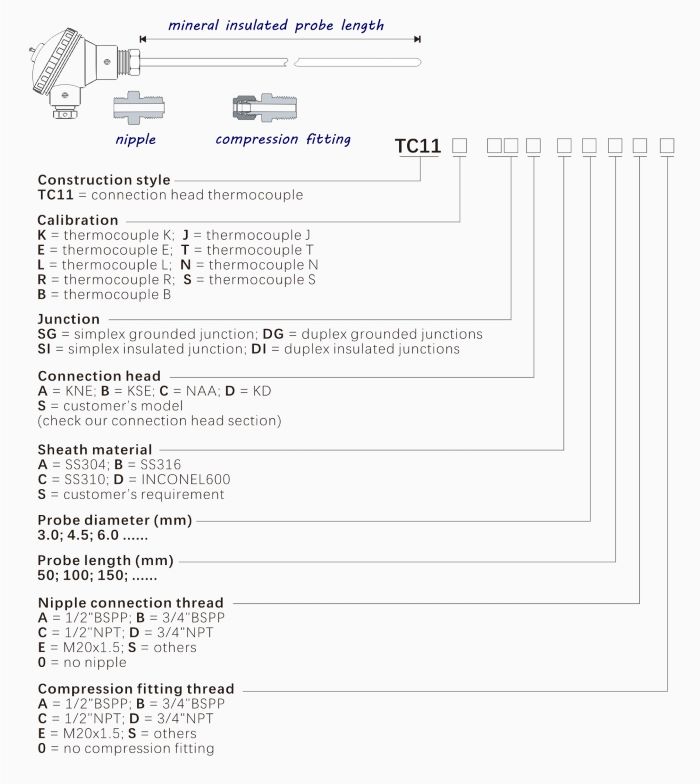

Order code
