RTD2-Bayonet PT100

Bayonet Resistance Temperature Detector (RTD)

Resistance temperature detector is good for measuring loads which require high accuracy and resolution. The whole temperature range is from -200 to +600℃. RTD elements can be thin film or ceramic bulb, both types on choices according to different applications. Bayonet RTD is mostly used in plastic machine which require high accuracy. The standard leading cable is fiberglass cable using at maximum temperature 400℃. All RTD are 100% tested before delivery conform to the standard IEC751-1983.

An example of order code
RTD2 PT100 2 B 010 A A A B
Bayonet RTD, type PT100, 2 wires, Accuracy Class B
Lead length 1 meter, Pocket OD8xL25mm/adaptor thread M12x1.5/cap to fit OD8mm spring
Spade lugs end

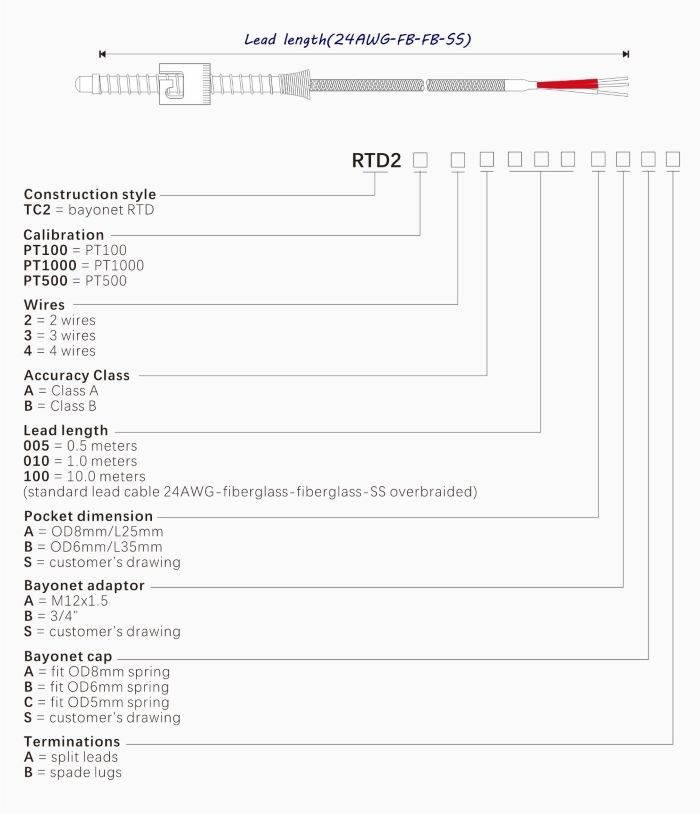

Order code
