RTD3-Straight sheath with Double Grooves PT100

Straight sheath with Double Grooves RTD

Resistance temperature detector is good for measuring loads which require high accuracy and resolution. The whole temperature range is from -200 to +600℃. RTD elements can be thin film or ceramic bulb, both types on choices according to different applications. Straight sheath with double grooves RTD is the beautiful out-looking. The standard leading cable is silicone cable using at maximum temperature 200℃. All RTD are 100% tested before delivery conform to the standard IEC751-1983.

An example of order code
RTD3 PT100 3 A 010 B B
Straight sheath with Double Grooves RTD, type PT100, 3 wires
Accuracy Class A, Lead length 1 meter
SS sheath OD5mm x Length 150mm, Spade lugs end

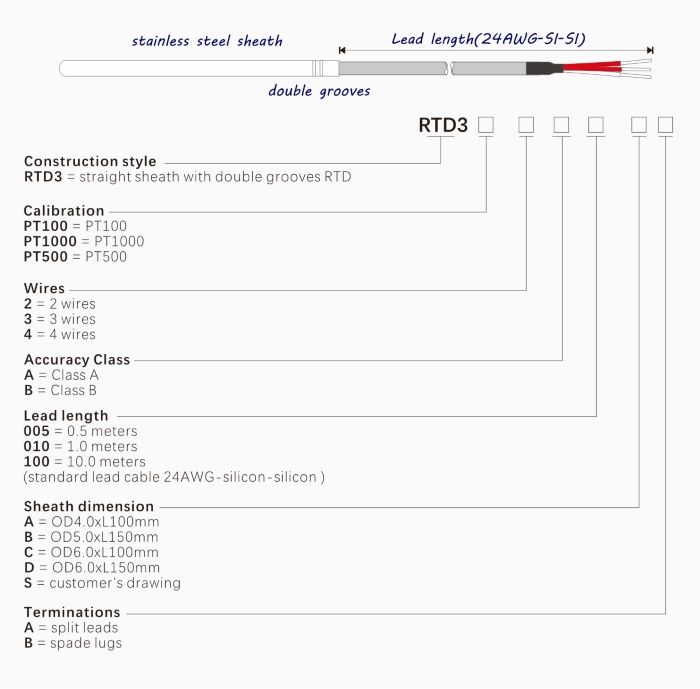

Order code
