RTD8-Connection head RTD

Connection head RTD  [ Mineral Insulated ]

Resistance temperature detector is good for measuring loads which require high accuracy and resolution. The whole temperature range is from -200 to +600℃. RTD thin film is loaded inside of Mineral insulated probe with high insulating resistance. Minimum outer diameter is 2.0mm. There are over 20 types of Connection heads and connection blocks on your choice. Mounting threads can be nipple or compression fitting. All RTD are 100% tested before delivery conform to the standard IEC751-1983.

An example of order code
RTD8 PT100 4 A D B 6.0-150 C 0
Connection head RTD, type PT100, 4 wires, Accuracy Class A
Connection head type KD, Mineral insulated sheath materials SS316, MI probe dimension OD6.0xL150mm
Nipple connection thread 1/2"NPT, no compression fitting

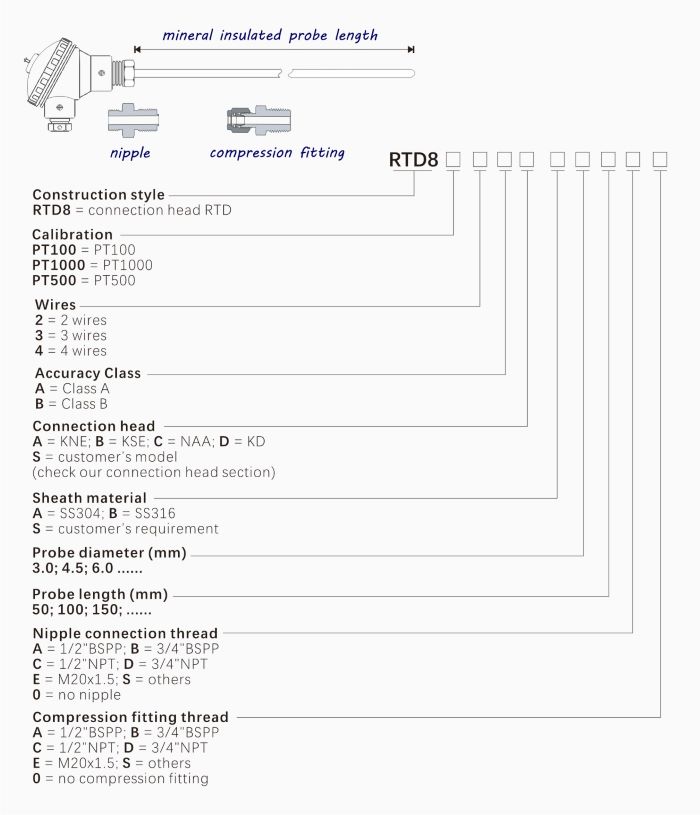

Order code
