DM series

DM series connectors

**Original thermocouple alloy pins except type R,S,B.

**Pins are polarized.

**Hollow pins&Solid pins are available.

**Well designed body ensures good insulation inside and good contact.

**Maximum ambient temperature for thermoplastic body is 200℃.

**Thermocouple type K, J, E, N, T, R, S, B, C, are available.

Models with Round pins (DM-R)

*Part No. Examples

DM-RH-MP-K-Yel = DM series, Round Hollow pins, Male Plug, thermocouple K, Yellow body

DM-RS-FS-J-Blk  = DM series, Round Solid pins, Female Socket, thermocouple J, Black body

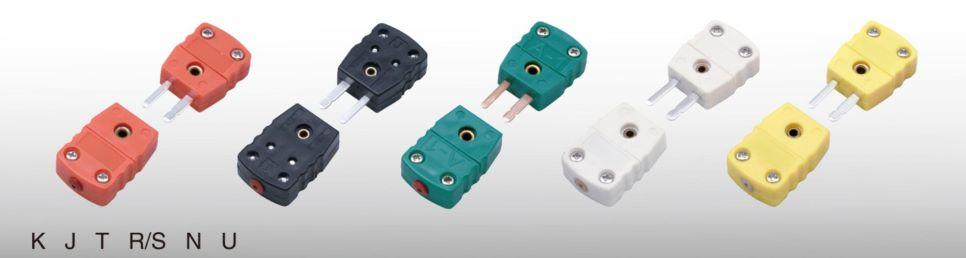

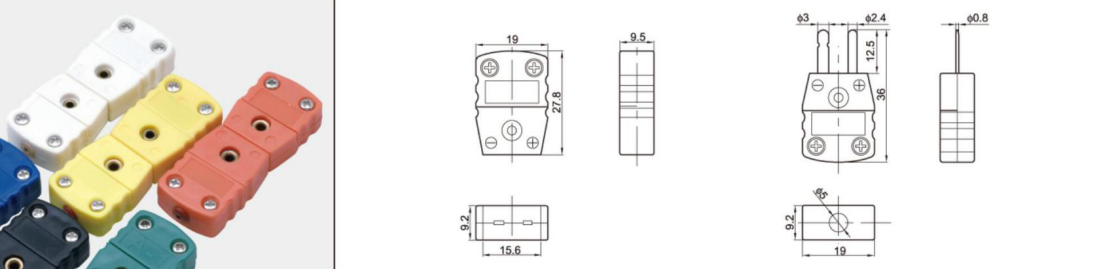

Mini connectors with flat pins (DM-M)

*Part No. Examples

DM-M-MP-U-Wht  = DM series, Mini connector, Male Plug, thermocouple U, White body

DM-M-FS-K-Grn  = DM series, Mini connector, Female Socket, thermocouple K, Green body
